Raceline LC Upgrade

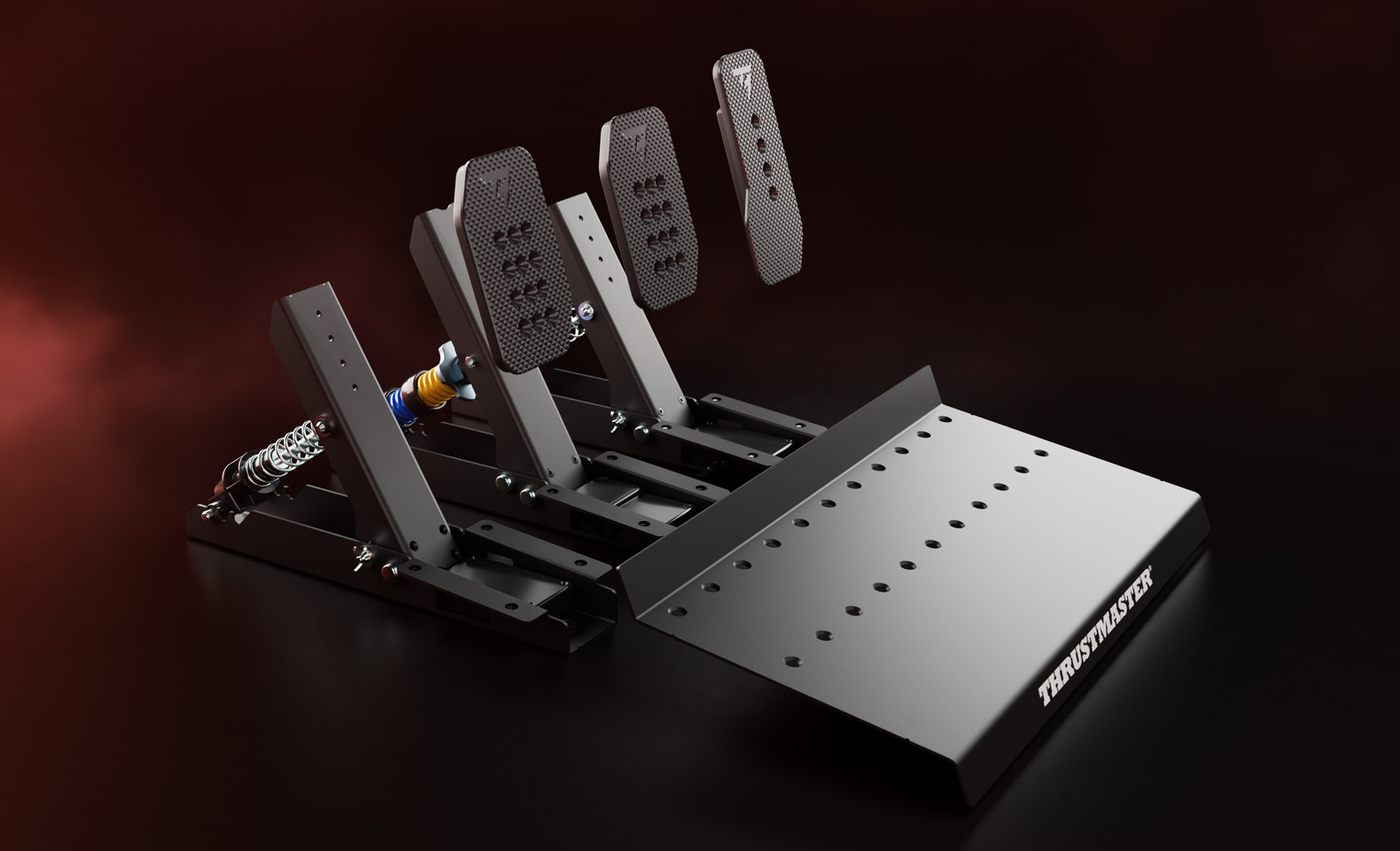

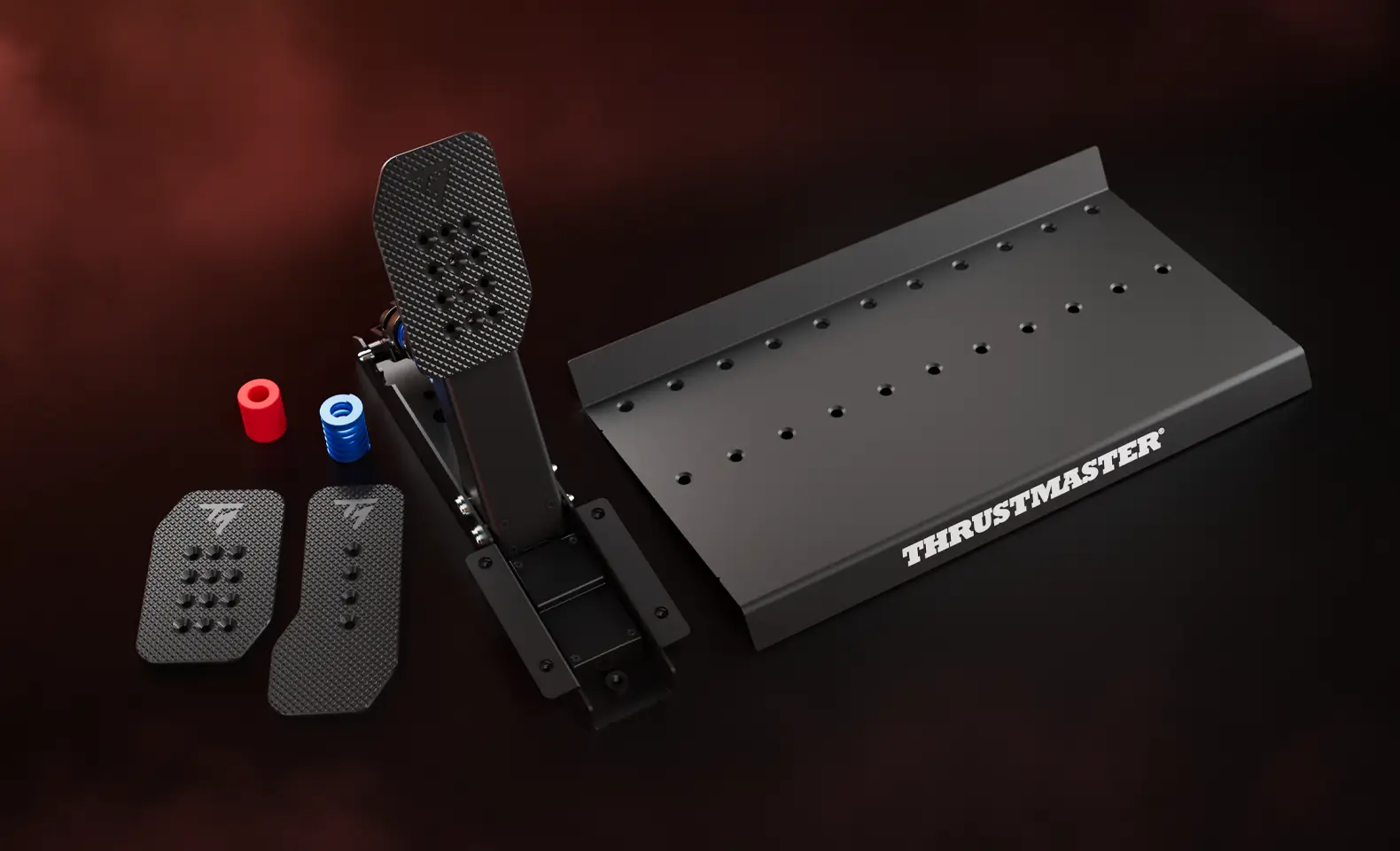

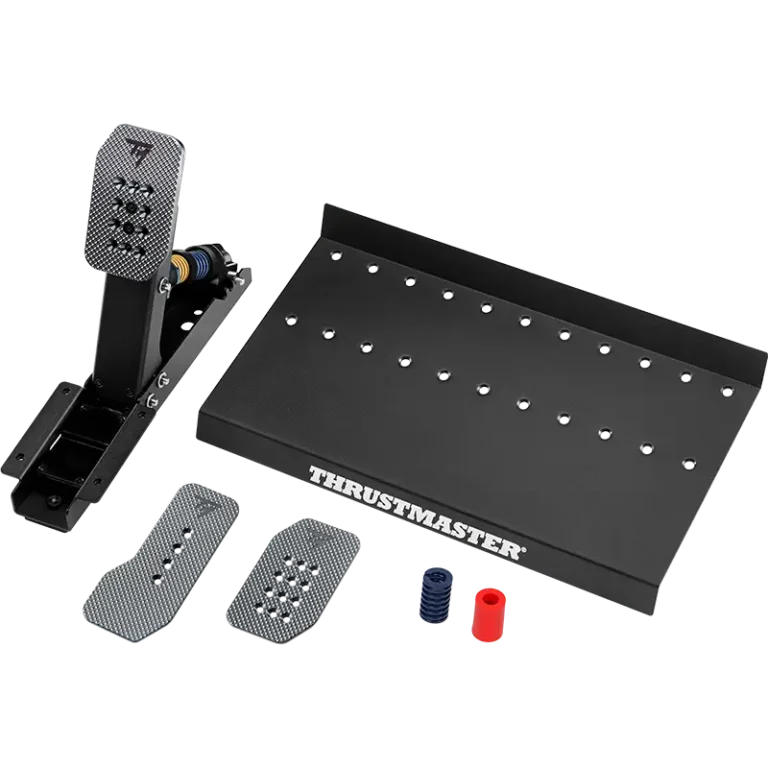

Raceline LC Upgrade includes a Load Cell brake pedal, an additional spring and elastomer buffer, a metal plate for 3 pedals, and 2 anthracite gray metal pedal heads for the clutch and accelerator. Take your racing to the next level by turning your Raceline pedal set into a Raceline Pedals III LC: it’s a sturdy, 100% metal, modular upgrade that offers a configuration tailored to every driving style, combining durability and elegance.

Because braking makes all the difference, equip your Raceline pedal set with a Load Cell sensor brake pedal that measures the pressure applied to the pedal, rather than the pedal’s travel. More realistic and precise than a potentiometer, it provides instinctive and effective braking, promoting muscle memory for greater consistency. The result: better control, enhanced precision and precious tenths of a second gained at every turn.

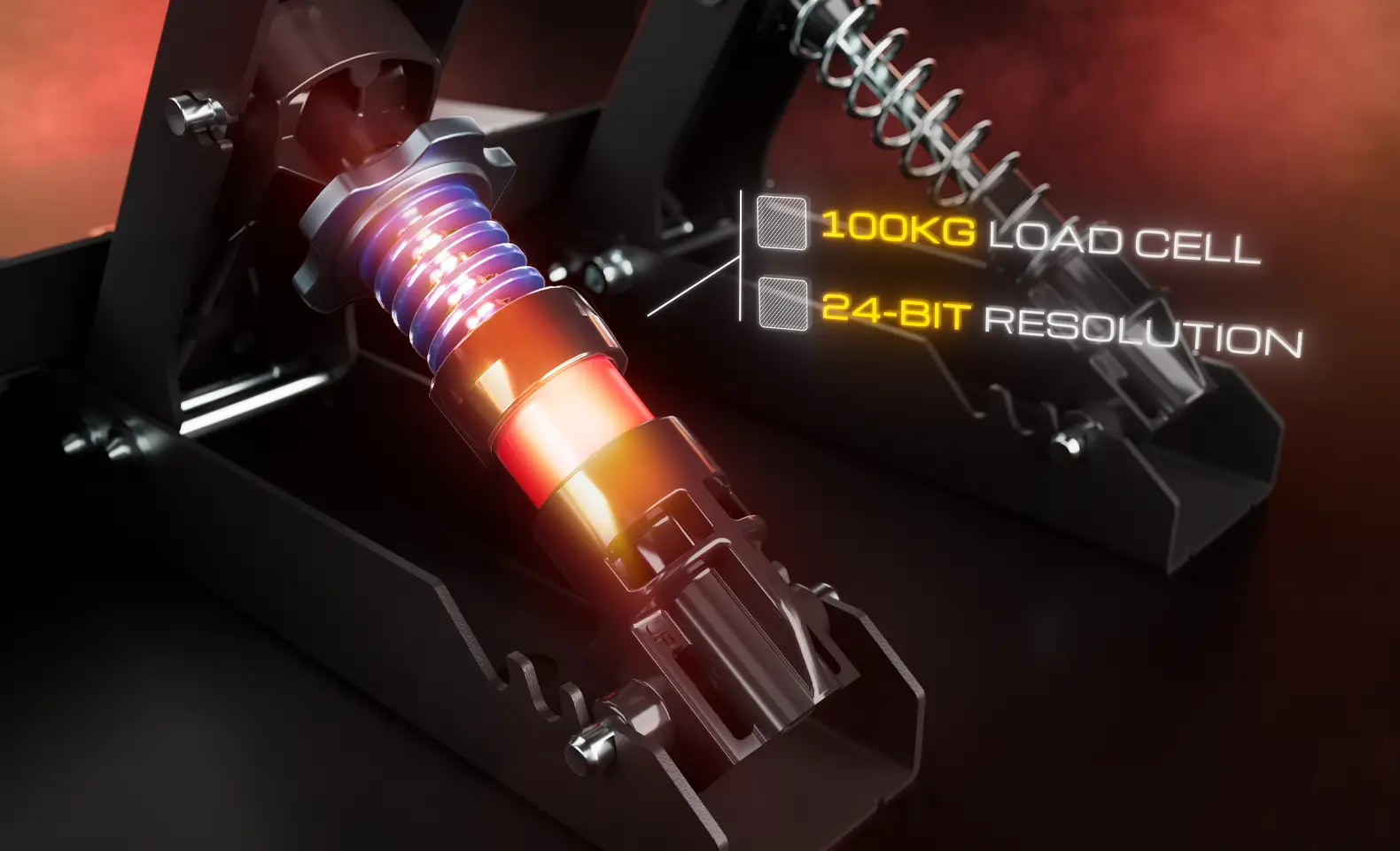

The high-sensitivity pressure sensor incorporated into Raceline LC Upgrade is capable of measuring loads of up to 220 lb / 100 kg. With its 24-bit resolution, it offers exceptional precision, accurately transmitting every gram of pressure applied over an 11° travel angle for super-sensitive, high-performance braking.

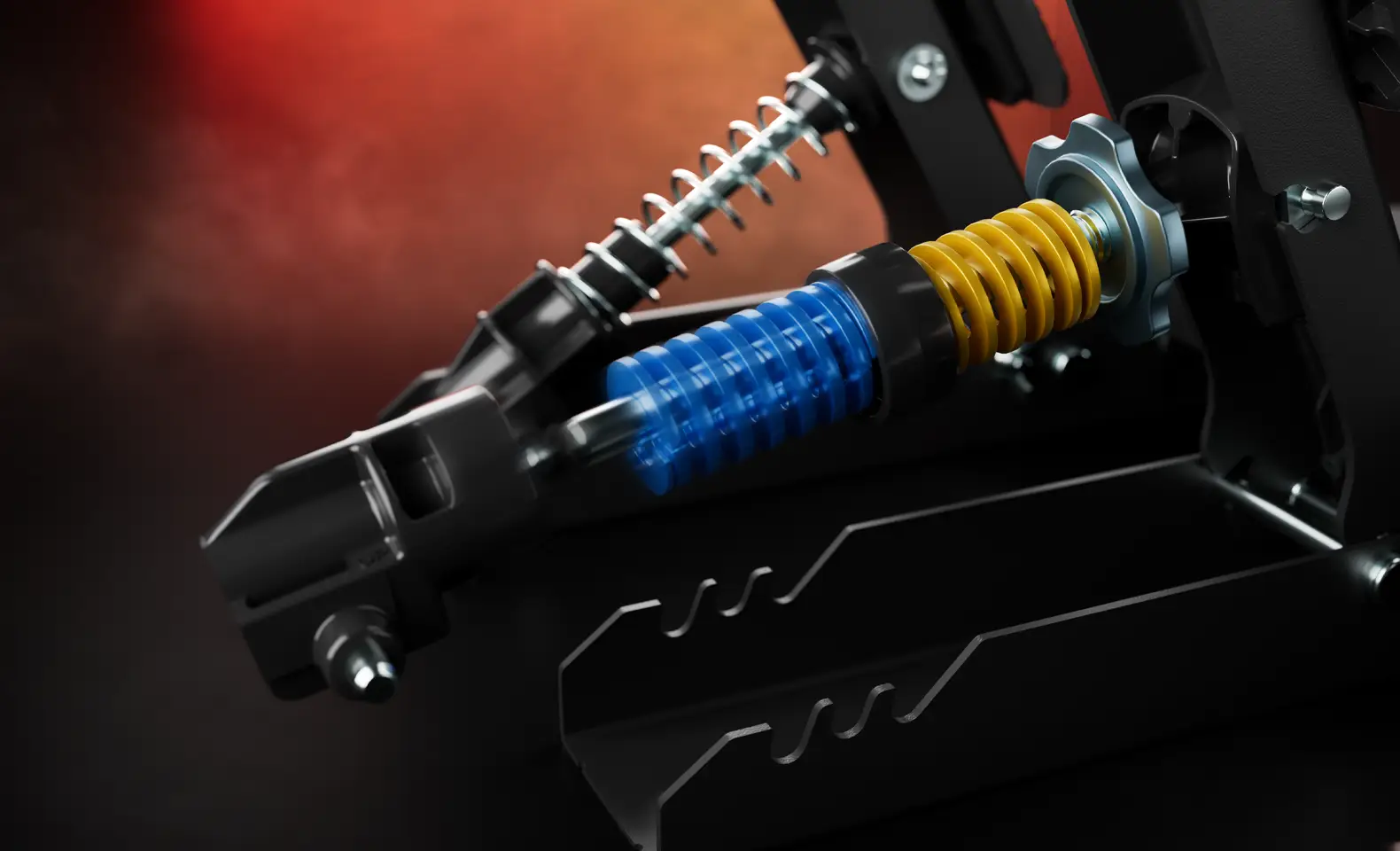

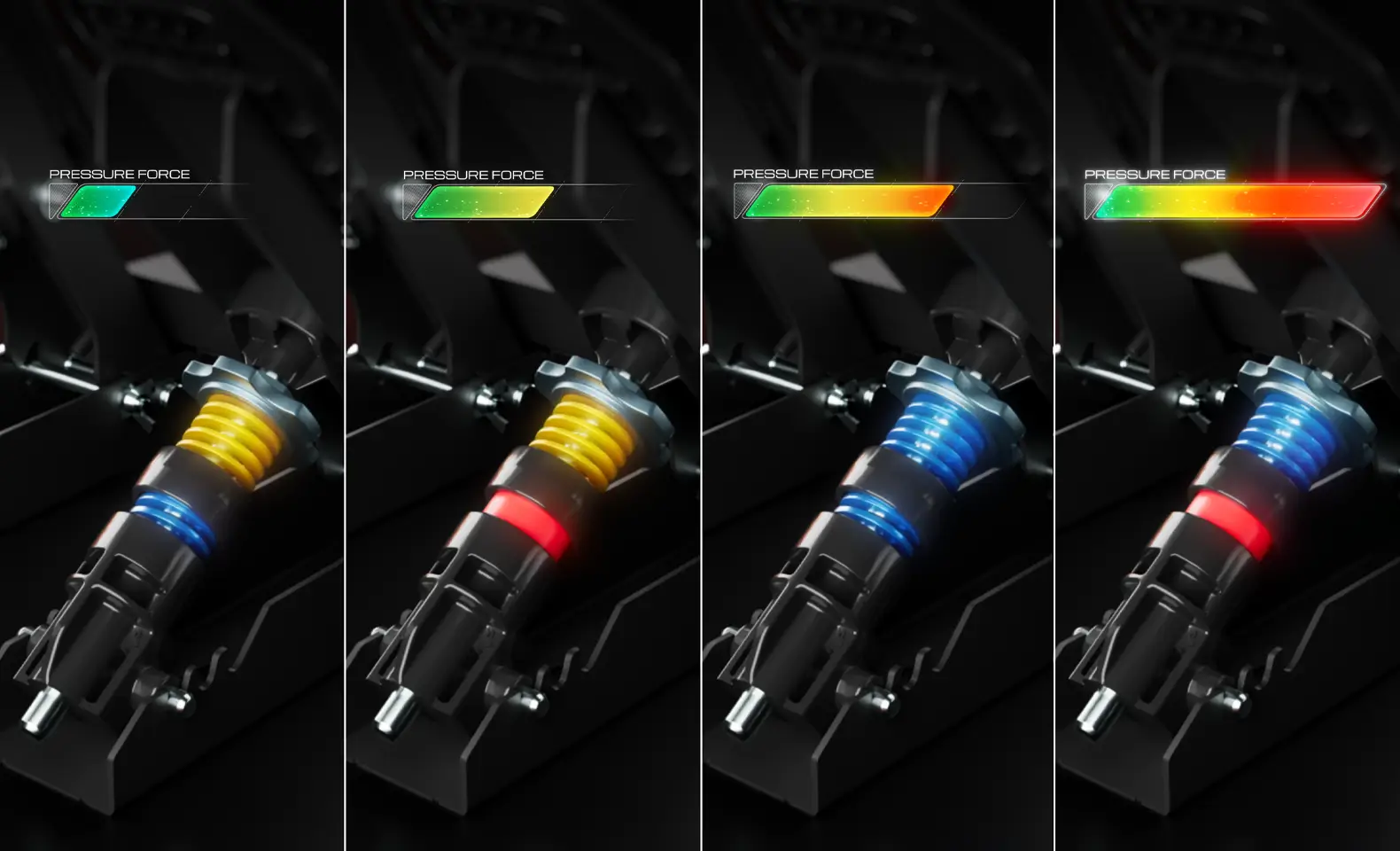

The brake pedal offers 4 versatile configurations, allowing you to easily adjust the maximum pressure force from 55–220 lb / 25–100 kg without any tools, thanks to the included 3 springs and elastomer buffer. The preload dial lets you fine-tune the force in increments of ±11 lb / 5 kg. This lets your pedal set perfectly adapt to all driving styles and all kinds of setups, whether in a cockpit or at a desk/table.

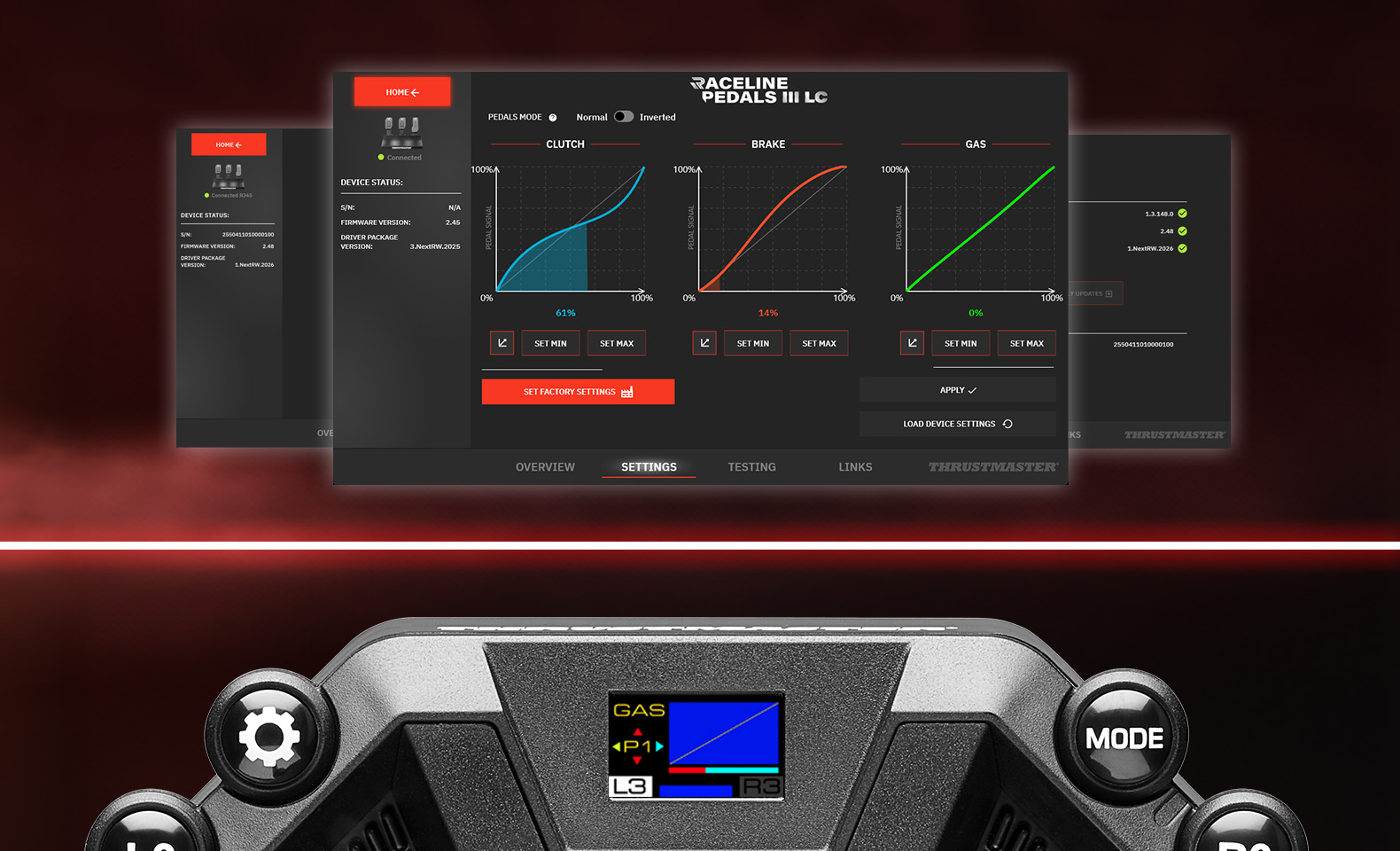

Unlock your Raceline pedal set’s full potential with advanced settings accessible directly via the T598 racing wheel’s Race Dash screen or the My Thrustmaster Panel software on PC. Adjust each pedal’s travel, add dead zones and customize your response curves with the EQUALIZER to modulate the sensitivity and behavior in your racing games.

Raceline LC Upgrade is an upgrade kit compatible with the Raceline Pedals LTE and Raceline Pedals III pedal sets. On game consoles, it works with all Thrustmaster Force Feedback racing wheel bases (excluding T500), thanks to the RJ45 cable and its included RJ12 converter. On PC (Windows 10/11), it is compatible with all racing wheel bases via USB connection.
Compatibility details are available on the Thrustmaster support website.
